How to Make a Shape Transparent in PowerPoint

You know the scene: you’re in the middle of building a PowerPoint deck and someone says, “Can you make the background image less… loud?” What they’re really asking is for some transparency magic. It’s one of those features that sounds fancy but takes about ten seconds once you know where to click.

The funny part is most people don’t even realize transparency is hiding in PowerPoint. They will try weird workarounds like fading an image in Photoshop, or just giving up and slapping solid blocks of color over everything. Meanwhile, there’s a slider buried in the program that can solve the problem instantly.

So let’s talk about how it works, why it’s useful and how not to abuse it. Because yes, you can go too far with transparency and end up with a ghostly mess of shapes floating around your slides.

Why You’d Ever Care About Transparency

Think about what happens when you put white text directly on a busy photo. Half the time it’s unreadable. That’s where transparency saves the day: you drop a semi-transparent rectangle behind the text and suddenly it pops.

Or let’s say you want to draw attention to part of a chart. You could circle it in bright red like you’re grading homework, but that looks clunky. A better move? Fade out everything else with a transparent overlay and leave the important bit untouched. People’s eyes go exactly where you want them to.

Designers do this kind of thing all the time… layering, fading and adjusting opacity. Transparency is basically the “poor man’s Photoshop” inside PowerPoint, and most of the time, it’s all you need.

Adding a Shape to the PowerPoint Slide

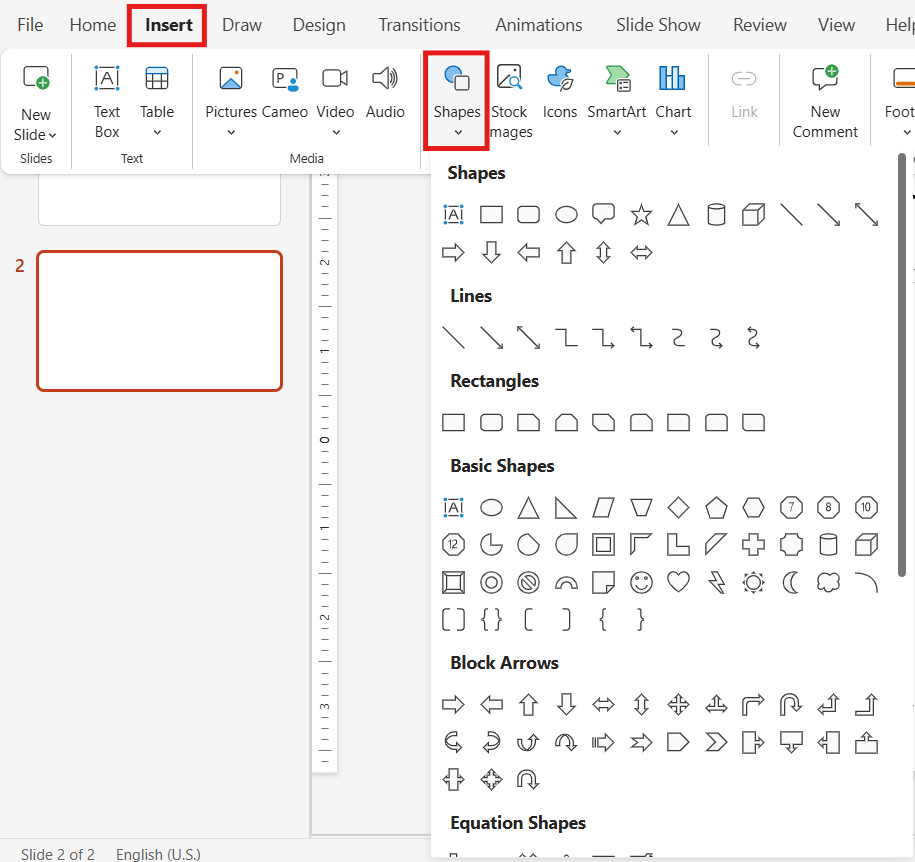

We’ll start at square one in case you’re very new to PowerPoint. First, go to the Insert tab, click Shapes and pick one. It doesn’t matter which. Rectangle, circle, triangle… whatever you want. Drop it anywhere on the slide. Right now, it’ll look like a solid chunk of color, probably with that default blue fill and outline. Not very exciting, but don’t worry.

Where is the Transparency Slider in PowerPoint?

Here’s the part that trips people up. The transparency control isn’t in the main ribbon where you’d expect it. You have to:

1. Right-click the shape.

2. Choose Format Shape.

3. Look at the panel that appears on the right.

Under Fill, there’s a little slider labeled Transparency. That’s the transparency control you’re looking for.

How to Use the Transparency Slides

The slide is pretty easy to use, and you can probably figure it out just fine without us walking you through it. But, if you’re still reading, we’ll go through the details. Simply drag the slider and watch the shape fade.

• At 0%, it’s completely solid.

• At 50%, it looks like tinted glass.

• At 100%, it disappears.

For most real uses, somewhere between 20–60% is the sweet spot. It’s enough to soften what’s underneath but not so faint that people wonder why the shape is there at all.

[More from Twistly: Where is Slide Master in PowerPoint and how do you use it?]

How to Remove the Outline

PowerPoint loves to give every shape a thick outline. The problem is, if you make the fill transparent but leave the border solid, it looks weird.

In the Line (or Outline) section of the formatting panel, either:

• Match the outline’s transparency to the fill, or

• Remove it entirely.

We recommended usually just going with no outline. It isn’t typically needed if you’re making the shape transparent anyway.

Gradient Transparency

OK, if you’re feeling advanced, try switching from Solid fill to Gradient fill. This lets you create shapes that fade in and out instead of having the same transparency all the way across.

You can add “stops” along the gradient and set each one to a different transparency. For example:

• Solid on the left, fading to clear on the right.

• A circle that’s dark in the middle but soft around the edges.

• A bar that gradually disappears, perfect for highlighting part of a process diagram.

It takes a minute to fiddle with, but once you figure it out you’ll start thinking of a hundred ways to use it.

Create PowerPoint
Slides with AI

Build AI-powered presentations from
any prompt, doc, or video

Start for free

Practical Uses for Shape Transparency in PowerPoint

Pretty cool, right? But if you’re still not sure how or when you would use this, here are some ideas to consider. Believe us… once you get started with it, you’ll find uses for this all the time.

• Text over photos: The most common move. Drop a 30% black or white rectangle behind your headline so it pops.

• Dim the background: Cover the entire slide with a semi-transparent rectangle, then bring key text or images to the front.

• Highlighting data: Instead of arrows or circles, use a transparent overlay to spotlight part of a chart. It’s cleaner and less distracting.

• Layered design: Stack a few transparent circles or rectangles for a trendy overlapping look. This works great on title slides.

Making a shape transparent in PowerPoint isn’t rocket science. It’s literally one slider buried in the Format Shape panel. But that one slider can make your slides look 10 times better if you use it thoughtfully.

Think of transparency like seasoning in cooking… a pinch makes the whole dish better, but dump in the whole jar and you’ve ruined dinner. Use it to improve readability, guide focus and give your slides a little design polish and people will think you put way more effort into your deck than you actually did.
